Butt Welded Fittings

Tana Drilling and Industries Plc has started to manufacture and supply a complete  range of HDPE butt weld fittings with for use exclusively with butt welding. These

fittings are often a preferred option for butt weld contractors as they are compact,

easily stacked for simplified transportation and storage, and excellent for prefabricated pipe works.

Butt fusion involves the simultaneous heating of the ends of two pipe/fitting components which are to be joined, until a molten state is attained on each contact surface. The two surfaces are then brought together under controlled pressure for a specific cooling time and a homogeneous fusion joint is formed. The resultant joint is fully resistant to end loads and has comparable performance under pressure to the pipe itself.

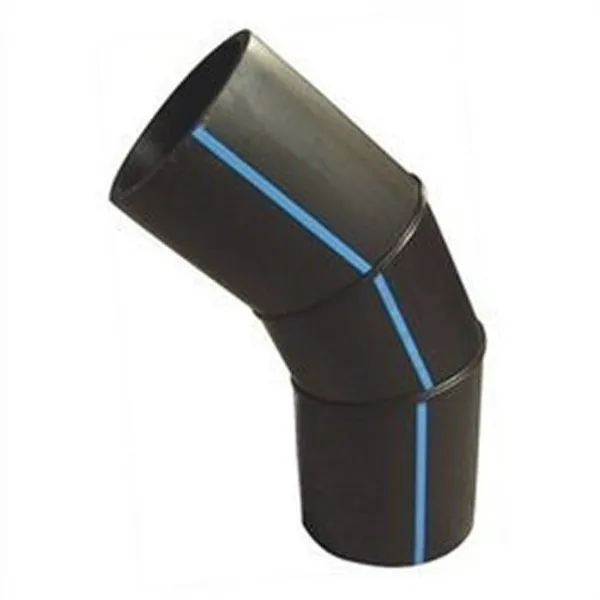

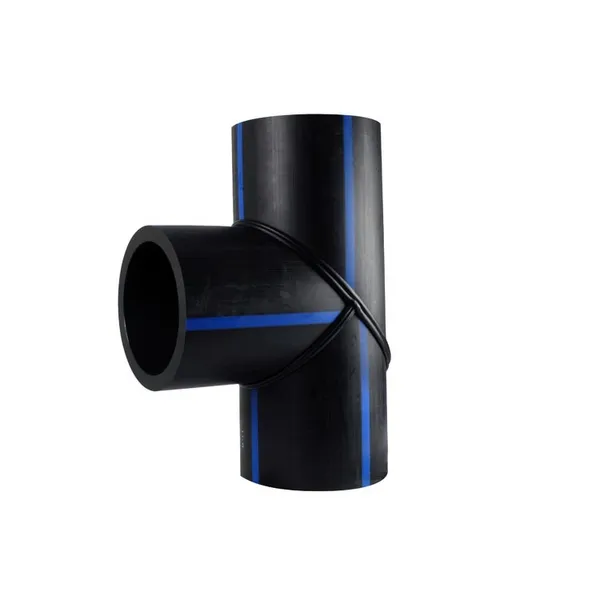

Concentric and eccentric equal tees, 90° bends (elbows), cross tees, end caps, and

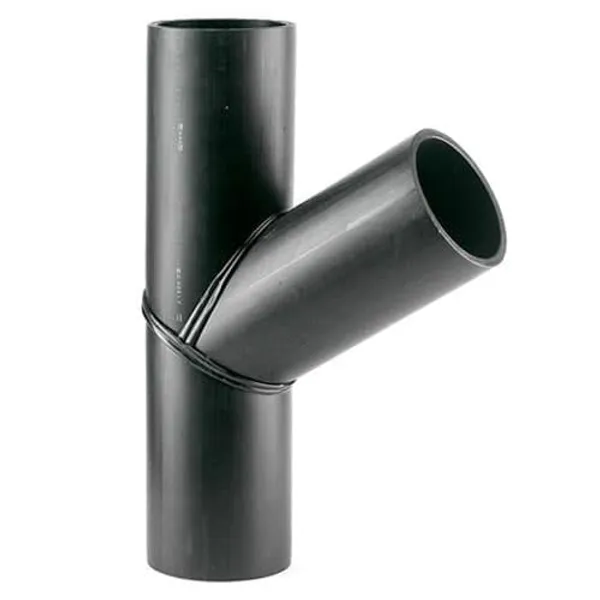

Y-Branches are all part of the comprehensive range of butt weld fittings manufactured and supplied by TDI. We have Production Capacity in all size of HDPE butt-welded/ Segmented fittings up to Ø400 mm nominal diameter. The offered items are fabricated utilizing quality sanction PE-100 material and propelled manufacturing machinery, instruments, and dynamic innovation and technology.
